SKORPIO CNC

the SKOrPIO
CNC RANGE (220V)

Our Skorpio CNC machines are manufactured locally to international standards and compete with global Brands.

Quality

A SKORPIO
CNC MACHINE FOR
EVERY PURPOSE

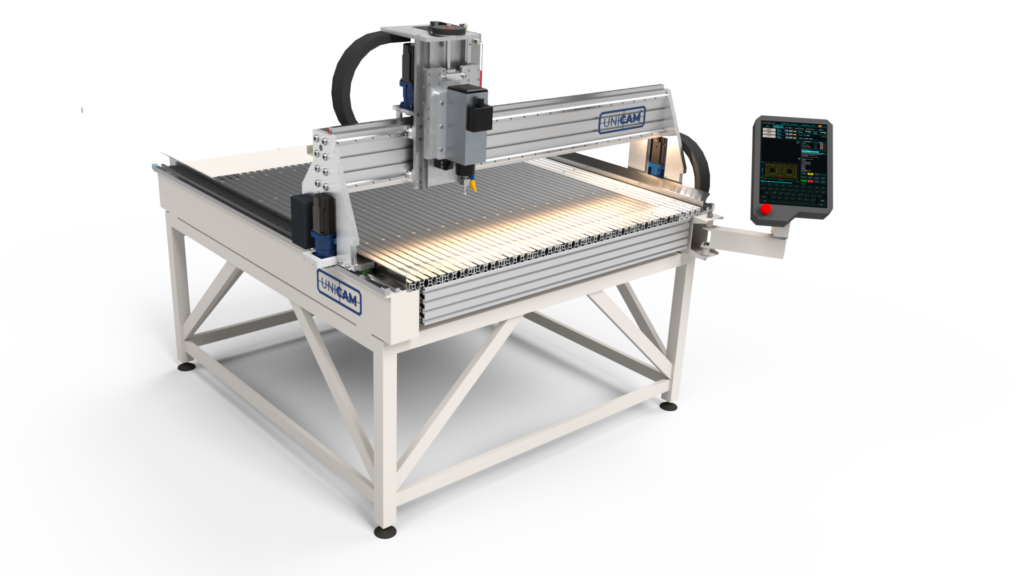

Skorpio 1200x1200

Designed for the signage industry, the Skorpio is a steel frame desktop model, a little lighter than our bigger machines, but still rigid and with the same desire to do work.

This little machine can cut Wood, Aluminum, Composites, and Non-Ferrous metals at up to 12 meters a minute while plugged into a 220 volt socket. It may be small, but it is tough.

The Skorpio sports geared stepper motors and a 2.2 or 3.5 KW spindle and an option of coming with either an aluminum T-Slot Table or a Tufnol Vacuum Table.

Both machines can be fitted with an ‘A Axis’ which can machine a cylindrical item.

Available in: – 1220mm x 1220mm or
– 2440mm x 1220mm.

220V

*from R218,000.00 ex. VAT.

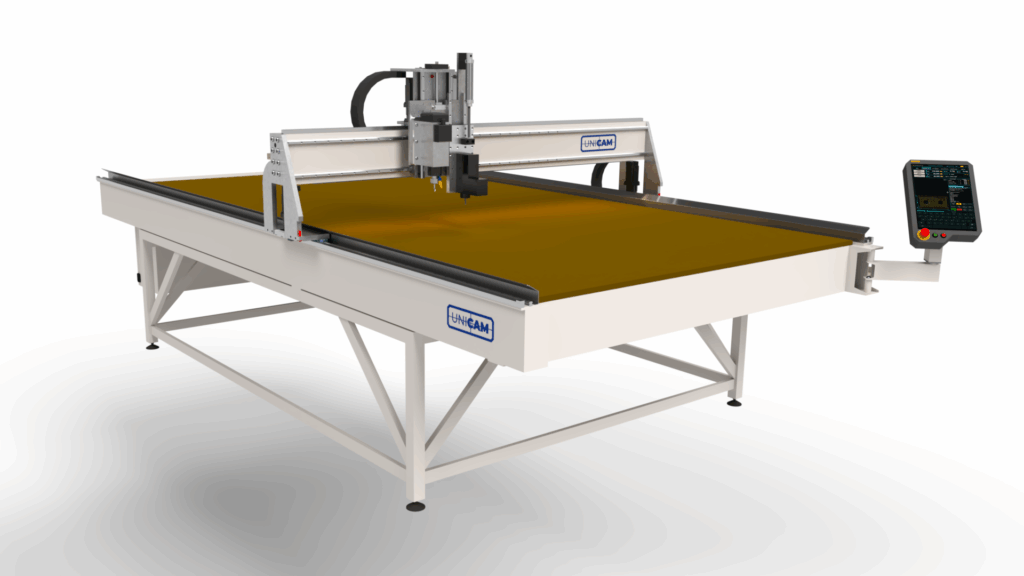

Signmaker 3500x1850

Working with signage materials, but need a large table, the Signmaker is a steel frame machine with a cutting area of 3500mm x 1850mm, it is a little lighter than our bigger machines, but its rigid and has a steel gantry.

Designed for cutting Wood, Aluminum, Composites, and Non-Ferrous metals at up to 12 meters a minute while plugged into a 220 single phase or 380v three phase depending on options.

The Signmaker is powered by servomotors with planetary gearboxes and can run with spindles from 2.2 KW MTC up to a 5 KW ATC spindle. It also has a choice of 2 tables, either an aluminum T-Slot Table or a Tufnol Vacuum.

Like the Skorpio it can be fitted with an ‘A Axis’ which can machine a cylindrical item.

Available in: – 3500mm x 1850mm

*from R490,000.00 ex. VAT.
